Precise, Reliable Control

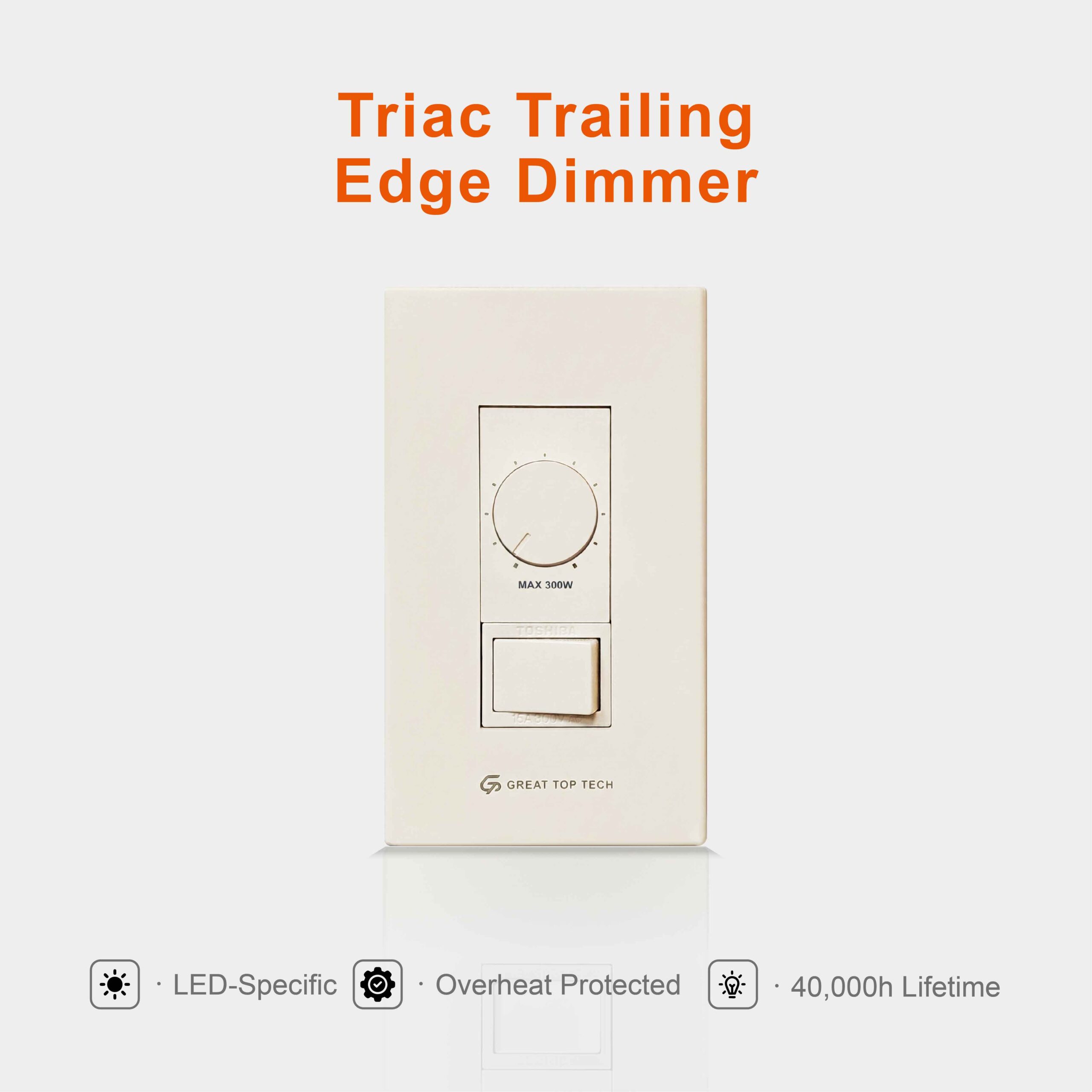

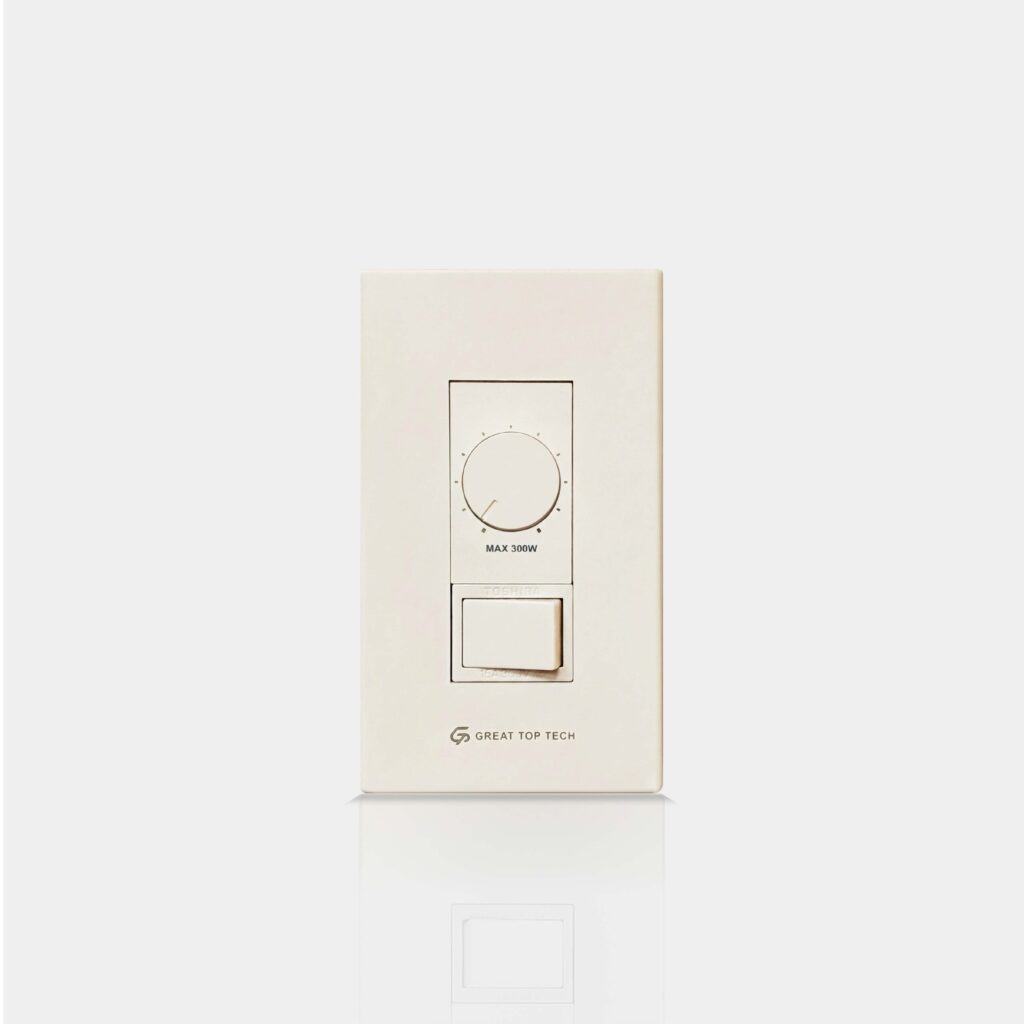

Triac Trailing Edge Dimmer: Key Performance
Smooth, Stepless Dimming
Experience silky-smooth brightness transitions with no flicker at any level. Protects eye comfort and enhances the spatial atmosphere for any scenario.
Built-in Safety Protection for Commercial Reliability
Over Temperature Protection
Prevents overheating during extended high-load operation by automatically reducing output or shutting down when temperatures exceed safe limits — extending product lifespan.
Specially designed for LED lighting applications
Engineered for compatibility and stability, rigorously tested to pair perfectly with Greattop LED Panel Lights, ensuring the best dimming performance and longevity.
47,000-Hour Operational Lifespan
Matches the lifespan of the LED panel itself, maintaining consistent system reliability and preventing lighting interruptions due to controller failure.
Corporate Office
Provides stable and soft illumination to create a workspace that balances professionalism and comfort. The dimming system supports multiple control modes, meeting the diverse lighting needs of modern offices.
- Enhances employee focus and comfort
- Supports Triac / 1–10V / PWM multi-control compatibility
- Energy-saving design reduces long-term electricity costs
Commercial Displays & Retail Spaces
Create different shopping atmospheres with 5%–95% dimming flexibility, while high CRI ensures accurate color rendering to enhance the customer experience.
- Flexible lighting adjustments to attract shoppers
- True-to-life product color rendering
- Reduced energy costs
Medical Facilities & Educational Institutions
Provide stable, soft ambient lighting to create a sense of comfort. The sealed design is easy to clean and maintain, meeting high hygiene standards while ensuring bright, clear visibility.
- Meets medical hygiene standards
- Comfortable ambient lighting
- Low maintenance requirements
| Item | Specifications |
|---|---|
| Model | DV300X-T12G-W |
| AC Input Voltage | 100~220 Vac |
| AC Input Current | Max. 2.72A@110Vac / 1.36A@220Vac |
| AC Input Frequency | 50 / 60 Hz |
| Output Voltage | 100 ~ 220Vac |
| Output Current | Max. 2.72A@110Vac / 1.36A@220Vac |
| Dimming Range | 5~95% (±1%) dimming / 0~4% dimmer off |
| Start-up Delay Time | 1.0 second (max) |
| Operating Environment | Temperature: -10°C~40°C / Humidity: 10%~95% RH |
| Storage Environment | Temperature: -20°C~70°C Storage Environment / Humidity: 5%~95% RH |
| Weight | 176 ± 20g |
| Dimensions (mm) | 120 × 70 × 57.8 mm |
