| Item | TR2-8060U-7W-02T | TR2-8120U-14W-02T |
| Power Consumption | 2FT – 7W ± 1W | 4FT – 14W ± 1W |
| Input Voltage Range (Vac) | AC 100V~240V, 50-60Hz | AC 100V~240V, 50-60Hz |
| Input Current | 0.09A Max @ 110Vac | 0.15A Max @ 110Vac |
| Luminous Flux | 1120 lm | 2240 lm |
| Color Temperature (CCT) | 4000K・6500K | 4000K・6500K |
| Dimensions (mm) | 580 mm | 1198 mm |
| Luminous Efficacy | 160 lm/W |
| Color Rendering Index (CRI) | ≧ 80 Ra |
Triac Dimmer – Specifications
| Item | Low Voltage Version (DV300X-T14L1-W/B) | High Voltage Version (DV300X-T14H1-W/B) |
| Input Voltage Range (Vac) | 100 – 120 Vac, 50 / 60 Hz | 200 – 220 Vac, 50 / 60 Hz |
| Input Current | 0.03 ~ 3A Max @ 110Vac | 0.03 ~ 1.36A Max @ 220Vac |
| Output Current | 3A Max (@100Vac, 300VA Max) | 1.36A Max (@220Vac, 300VA Max) |
| Lifespan | 47,000 hours (@40°C) |
| Dimensions (mm) | 120 × 70 × 57.8 mm |

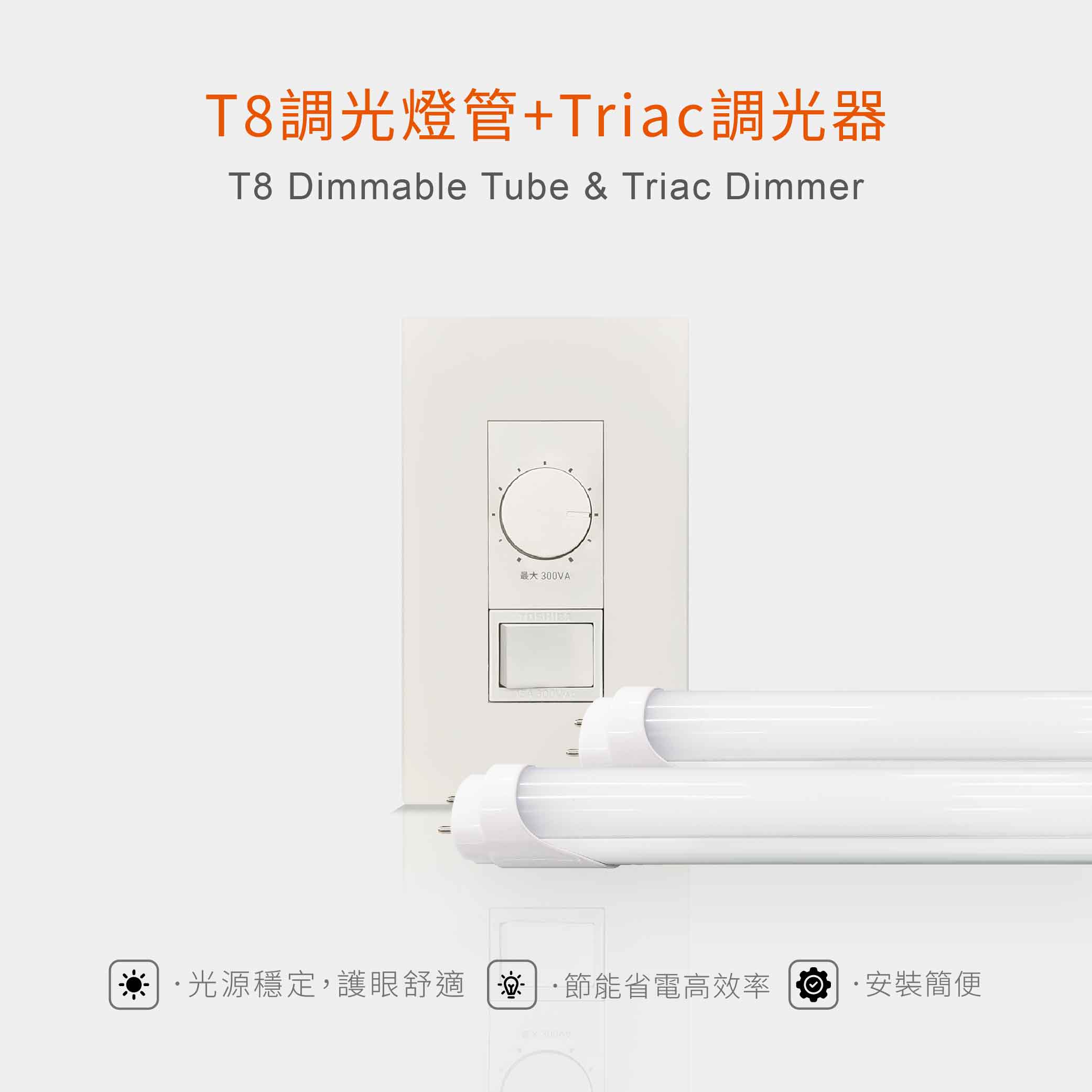

The T8 Dimmable LED Tube + Triac Dimmer System delivers a flexible and energy-efficient lighting solution, ideal for both commercial and residential environments. Powered by a high-lumen, low-consumption LED light source, the tube provides stable, flicker-free illumination. Users can easily adjust brightness levels using the Triac dimmer, allowing customized lighting based on space and ambiance needs.The system supports connection of up to 8 tube lights and offers a modern, minimalist dimmer panel design in both white and black finishes. Its simple installation and user-friendly interface ensure quick integration into existing lighting setups—making it an ideal upgrade from traditional lighting systems.Combining efficiency, convenience, and visual comfort, this system is a smart choice for offices, conference rooms, retail spaces, and homes.
