| Model | T5 SHORT ECGSmart SERIES | |||
| Power | 4W | 4W | 5W | 7W |
| Input Voltage Range (Vac) | 28V | 30V | 39V | 45V |
| Base Type | Mini bi pin G5 | |||
| Power Supply | Double-End (Double-Sided) | |||
| Lifespan | > 50,000 hours | |||
| Switching Cycles | > 25,000 times | |||
| Dimensions (mm) | 136 | 212 | 288 | 517 |
| Color Temperature (CCT) | 3000K–6000K / RGB | |||
| Luminous Efficacy (Options) | 100lm/W ~ 130lm/W | |||
| Color Rendering Index (CRI) | ≥ 80 Ra | |||
| Beam Angle | 140° | |||
| Color Consistency (SDCM) | < 6 | |||
| R9 | > 1 | |||
| Operating Temperature | -20°C ~ 45°C | |||
| Fluorescent Lamp Replacement | 4W | 6W | 8W | 13W |

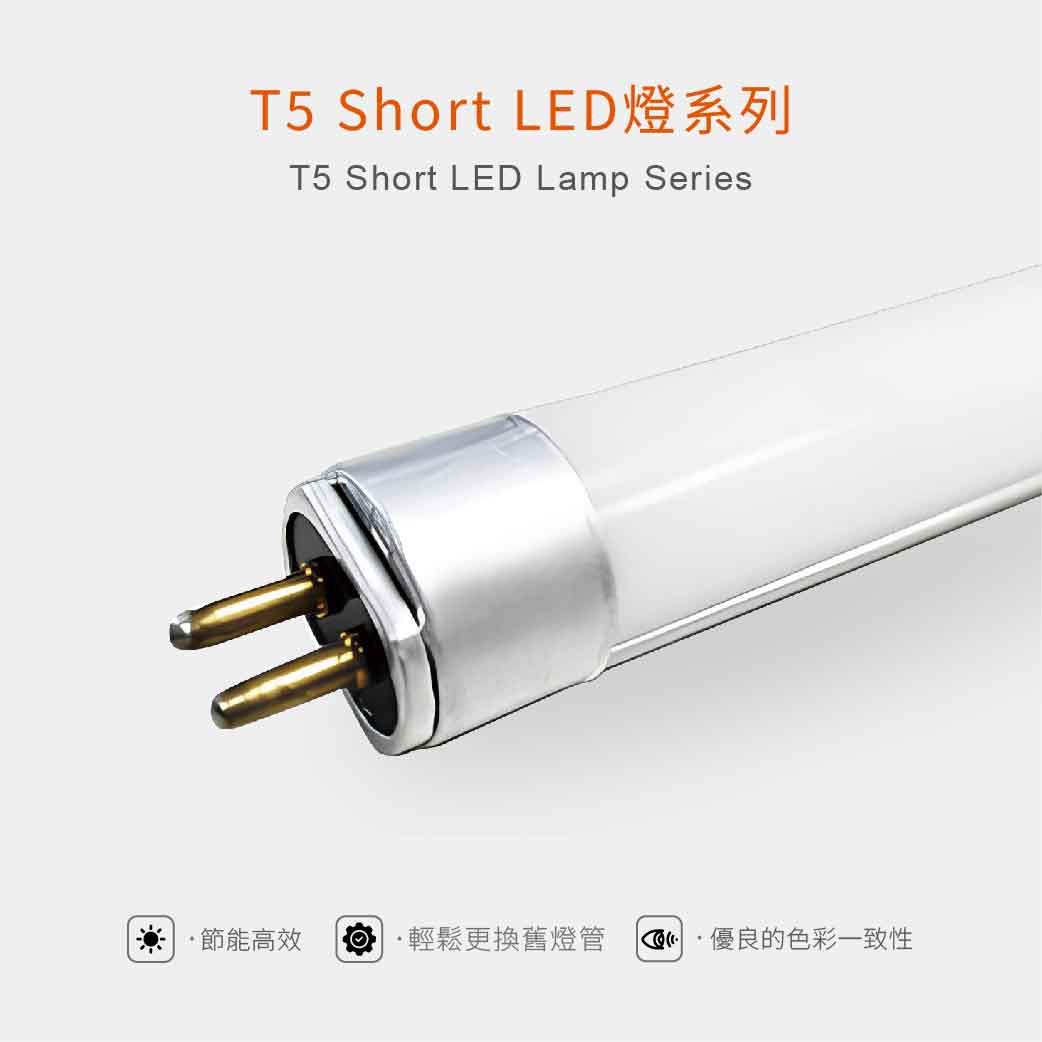

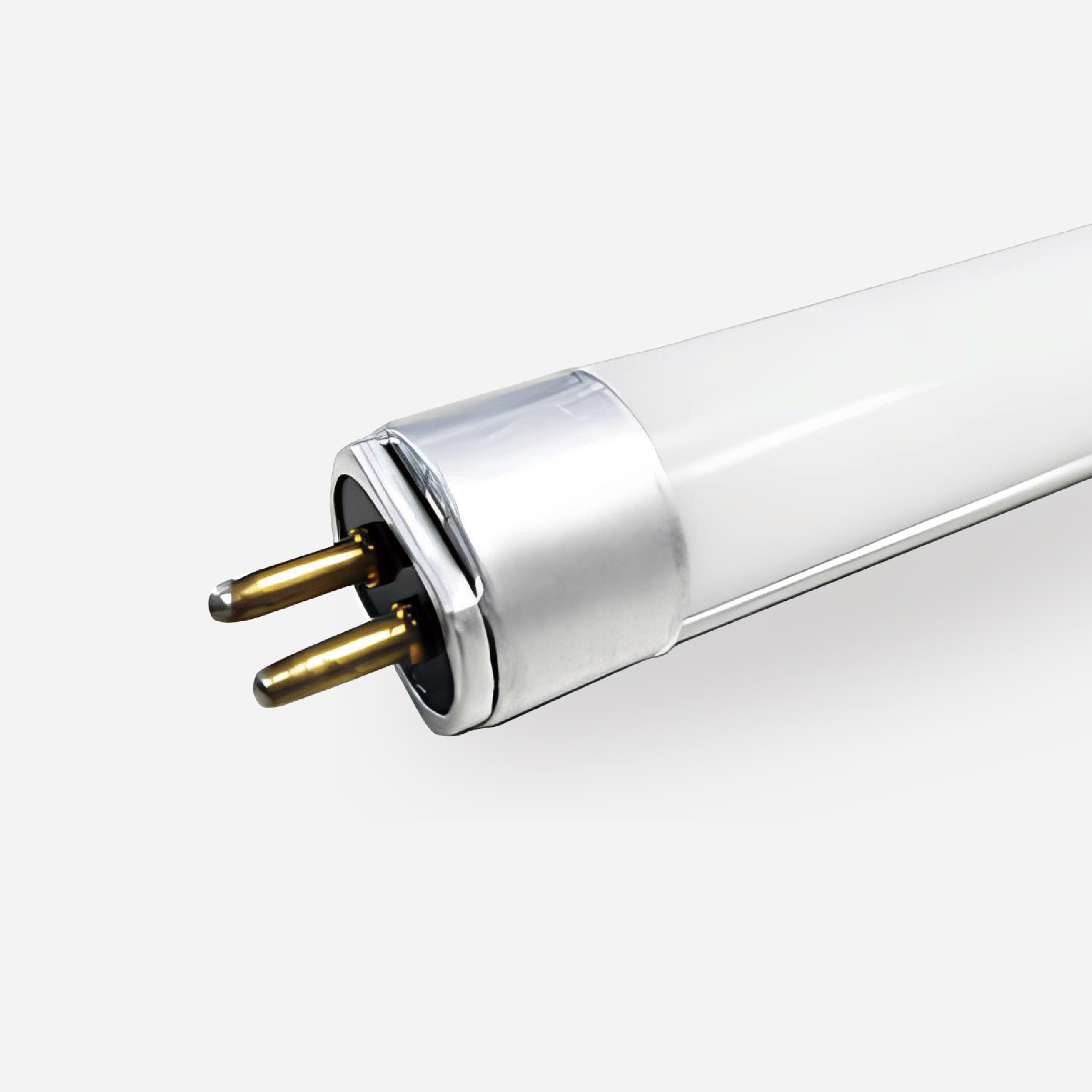

The T5 SHORT LED Tube Series features high-efficiency, energy-saving LED tubes with power options ranging from 4W to 7W, specifically designed as a replacement for traditional fluorescent lamps.
Each tube uses a Mini Bi-Pin G5 base with double-ended power input, ensuring quick and easy installation. With a luminous efficacy of up to 130 lm/W, the series offers color temperature options from 3000K warm white to 6000K daylight white, and also supports RGB color lighting to meet diverse illumination needs.Certified by CE and RoHS, these eco-friendly tubes deliver over 50,000 hours of lifespan and can withstand more than 25,000 switching cycles, ensuring long-term durability and reliability.The T5 SHORT LED Tube Series not only provides outstanding energy efficiency but also guarantees stable light output and excellent color consistency, making it an ideal lighting choice for offices, commercial spaces, and home environments.
