| Model | T5 HE LED Direct Replacement Tube | |||
| Item | 2FT | 3FT | 4FT | 5FT |
| Dimensions (mm) | 563×17mm | 863×17mm | 1163×17mm | 1463×17mm |
| Power | 9W | 13W | 18W | 21W |
| Output Current (mA) | 152~168 | |||
| Base Type | Mini bi pin G5 | |||
| Driving Voltage | Driven by electronic ballast | |||
| Lifespan | > 50,000 hours | |||
| Switching Cycles | > 25,000 times | |||
| Color Temperature (CCT) | 3000K–6000K / RGB | |||
| Luminous Flux | 900–1080 lm | 1300–1560 lm | 1800–2160 lm | 2100–2520 lm |
| Color Rendering Index (CRI) | ≥ 82 Ra | |||
| Beam Angle | 140° | |||
| R9 | > 1 | |||
| Operating Temperature | -20°C ~ 45°C | |||
| Replacement for traditional T5 fluorescent tubes | HE 14W | HE 21W | HE 28W | HE 35W |

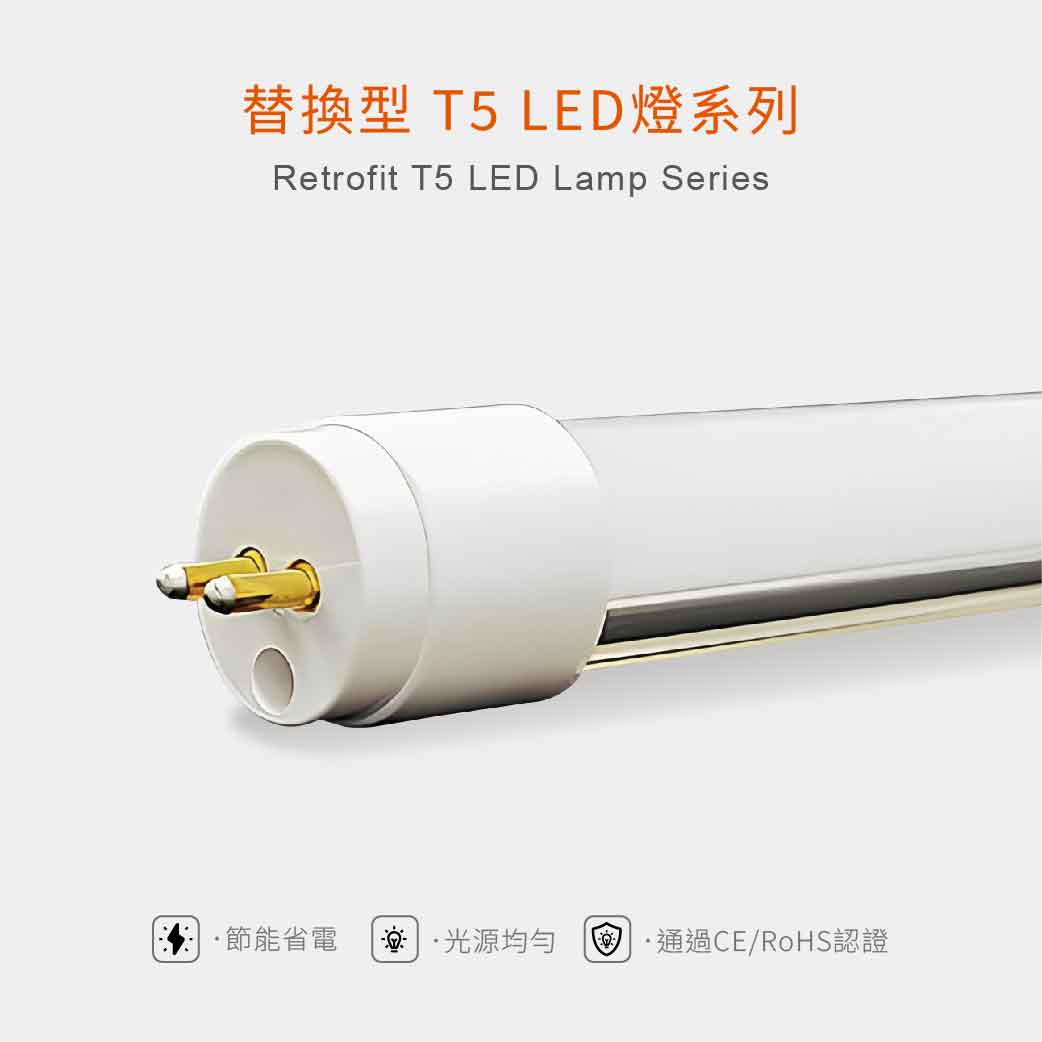

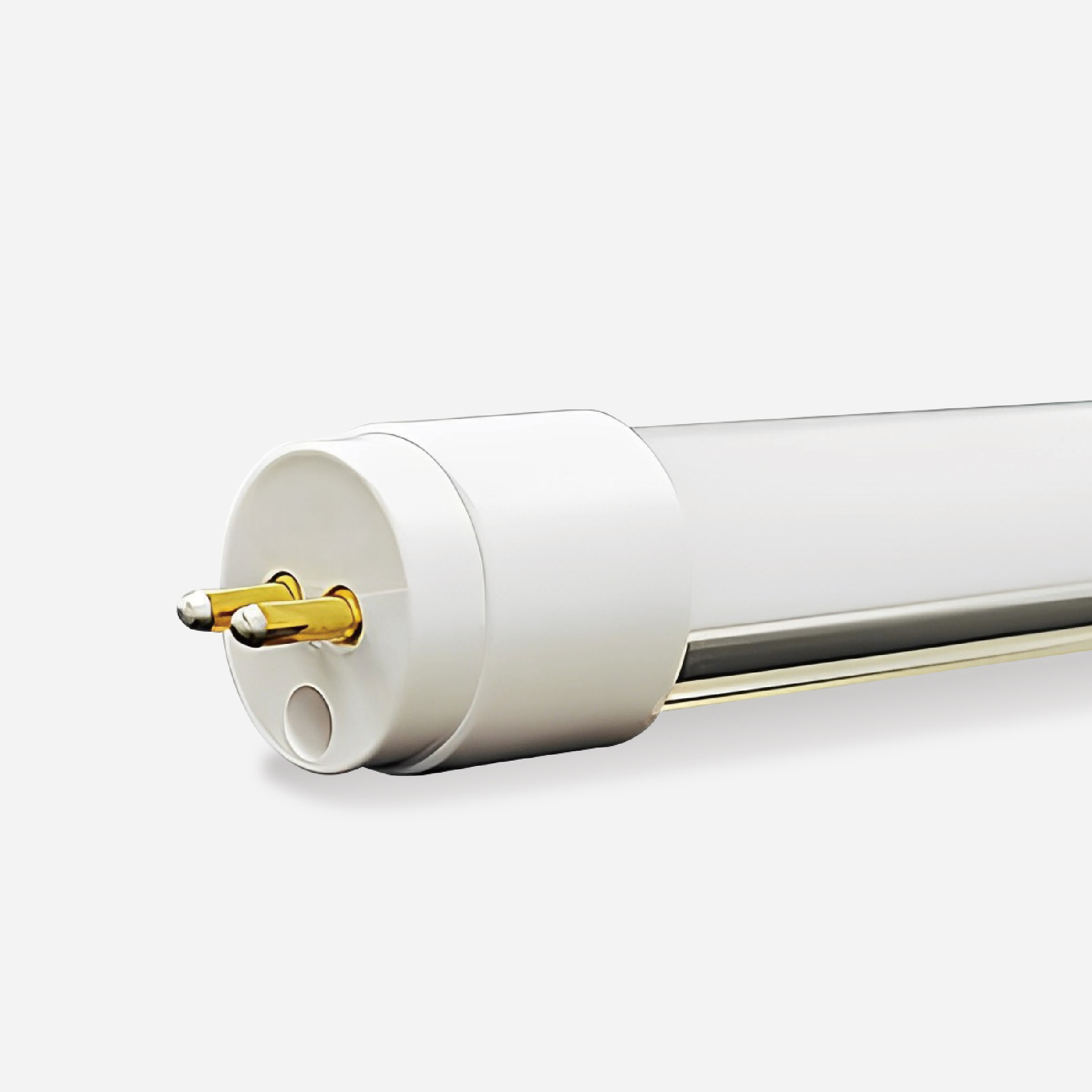

T5 LED Tube This high-efficiency, energy-saving direct replacement LED tube is one of the most popular eco-friendly lighting solutions on the market. With a lifespan of up to 50,000 hours, it is suitable for a wide range of applications. Available in multiple sizes (2FT, 3FT, 4FT, 5FT) and power ratings (9W to 21W), it features a Mini bi-pin G5 base.The T5 LED tube offers a color temperature range from 3000K to 6000K and achieves luminous efficacy up to 130 lm/W. With a color rendering index of ≥82 Ra, it provides natural and comfortable lighting. It supports over 25,000 switching cycles and is designed to replace traditional T5 fluorescent tubes, reducing energy consumption and maintenance costs.
