| Item | GX24q LED ECGSmart Series | |||
| Power | 6W | 7W | 10W | 12W |
| Input Voltage Range (Vac) | – | – | – | 36V |
| Base Type | GX24q | |||
| Power Supply | Single-sided (4-pin) | |||
| Lifespan | > 50,000 hours | |||
| Switching Cycles | > 25,000 times | |||
| Dimensions (mm) | 107mm × 36mm | 135mm × 46mm | ||
| Color Temperature (CCT) | 3000K–6000K / RGB | |||
| Luminous Efficacy (Options) | 100lm/W ~ 130lm/W | |||
| Color Rendering Index (CRI) | ≥ 82 Ra | |||
| Beam Angle | 180° | |||
| Color Consistency (SDCM) | < 6 | |||
| R9 | > 1 | |||
| Operating Temperature | -20°C ~ 45°C | |||
| Fluorescent Lamp Replacement | 13W | 18W | 26W | 32W / 42W |

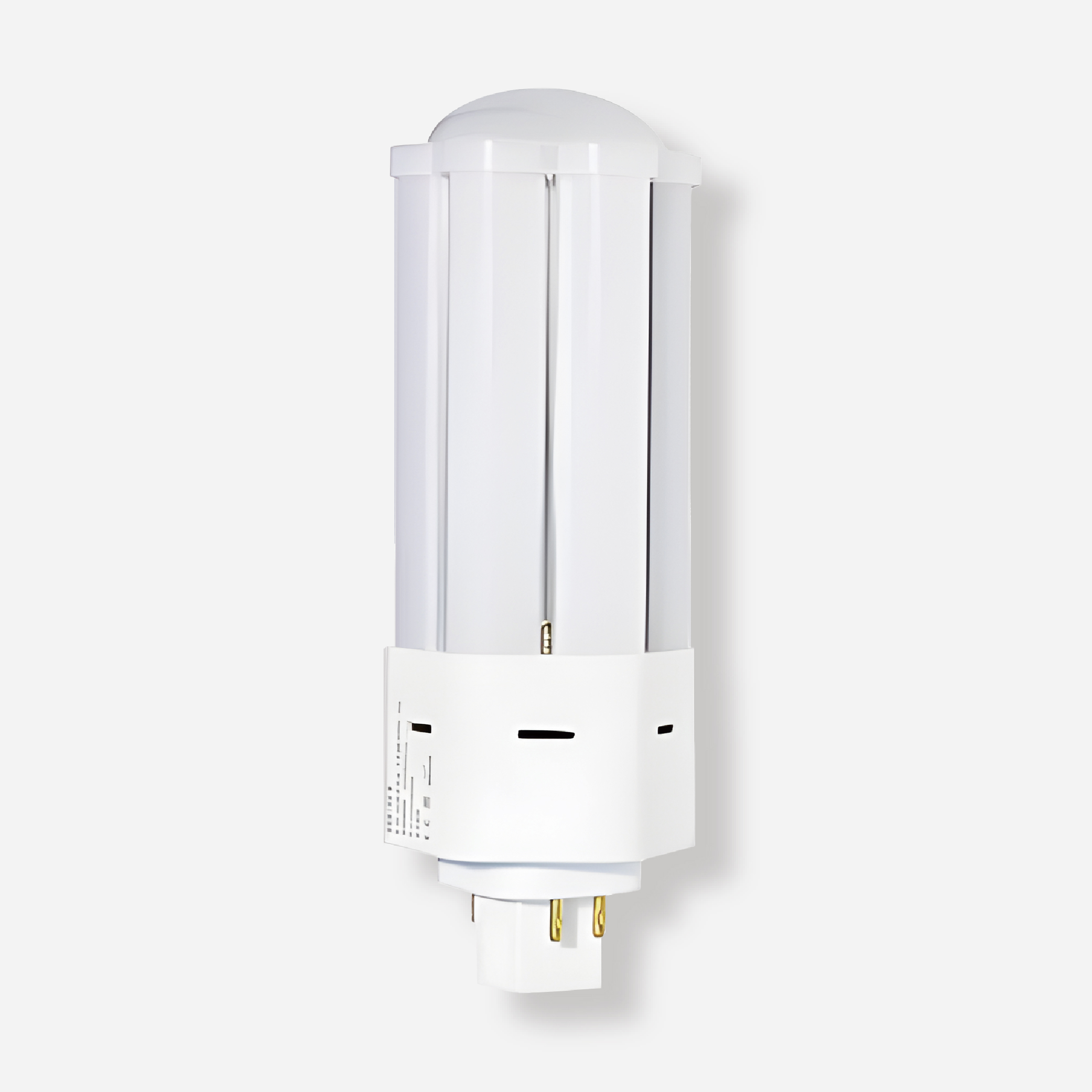

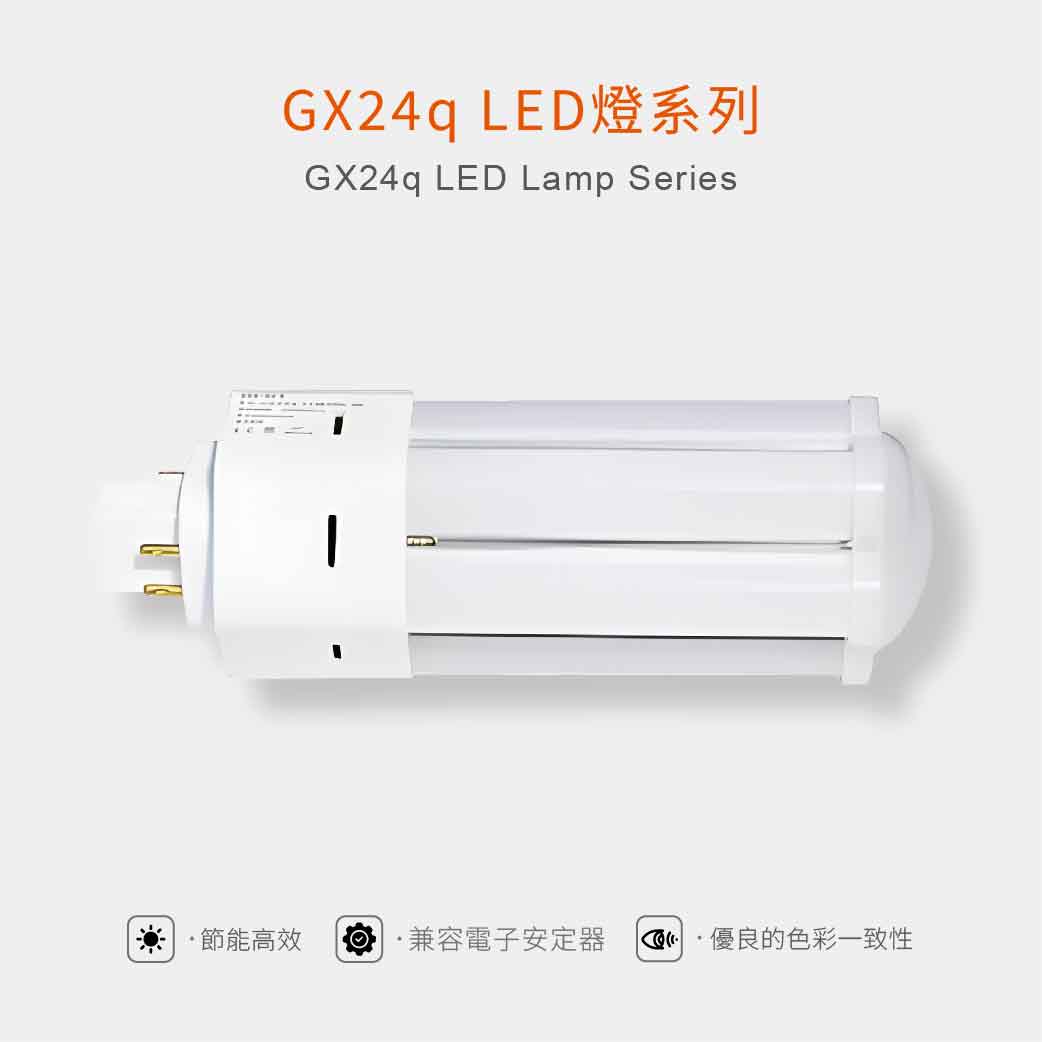

GX24Q LED燈系列是專為取代傳統GX24Q燈管設計的高效節能照明產品。此系列燈管Power涵蓋9W到25W，提供多種色溫選擇（3000K至6000K），適用於辦公室、商業空間及住宅環境。GX24Q LED燈系列擁有超過50,000小時的長壽命，減少維護成本，同時兼容多款電子安定器，安裝簡便。產品通過CE及RoHS認證，確保安全與環保標準。其高光效及均勻亮度能有效降低能耗，提升照明品質，是替換舊式燈具的理想方案。
