| Model | 2G7 LED ECGSmart Series | |||
| Power | 3W | 4W | 5W | 6W |
| Input Voltage Range (Vac) | 15V | 24V | 30V | 36V |
| Base Type | 2G7 | |||
| Power Supply | Single-sided (4-pin) | |||
| Lifespan | > 50,000 hours | |||
| Switching Cycles | > 25,000 times | |||
| Dimensions (mm) | 89mm | 119mm | 149mm | 189mm |
| Color Temperature (CCT) | 3000K–6000K / RGB | |||
| Luminous Efficacy (Options) | 100lm/W ~ 130lm/W | |||
| Color Rendering Index (CRI) | ≥ 82 Ra | |||
| Beam Angle | 180° | |||
| Color Consistency (SDCM) | < 6 | |||
| R9 | > 1 | |||
| Operating Temperature | -20°C ~ 45°C | |||
| Fluorescent Lamp Replacement | 5W | 7W | 9W | 11W |

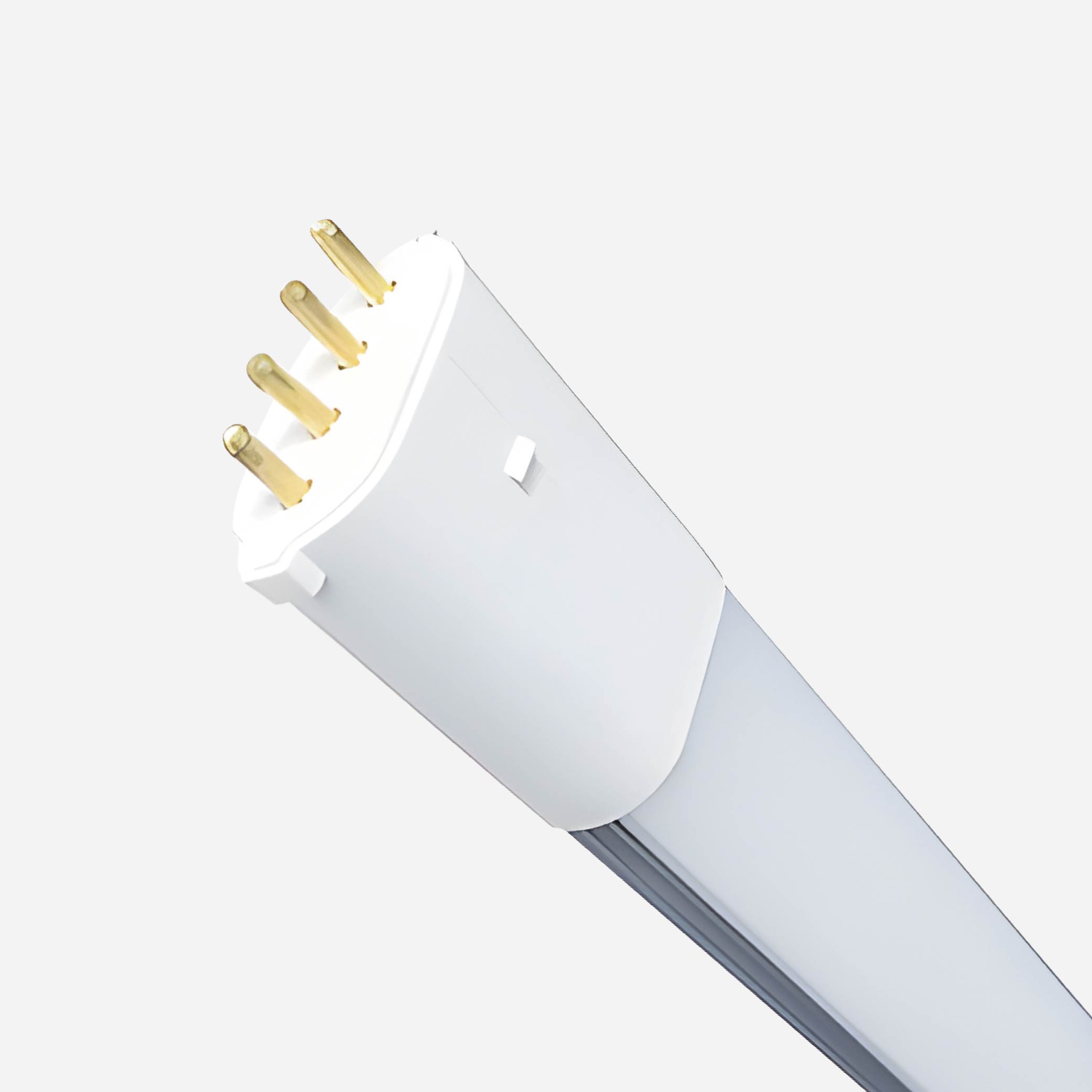

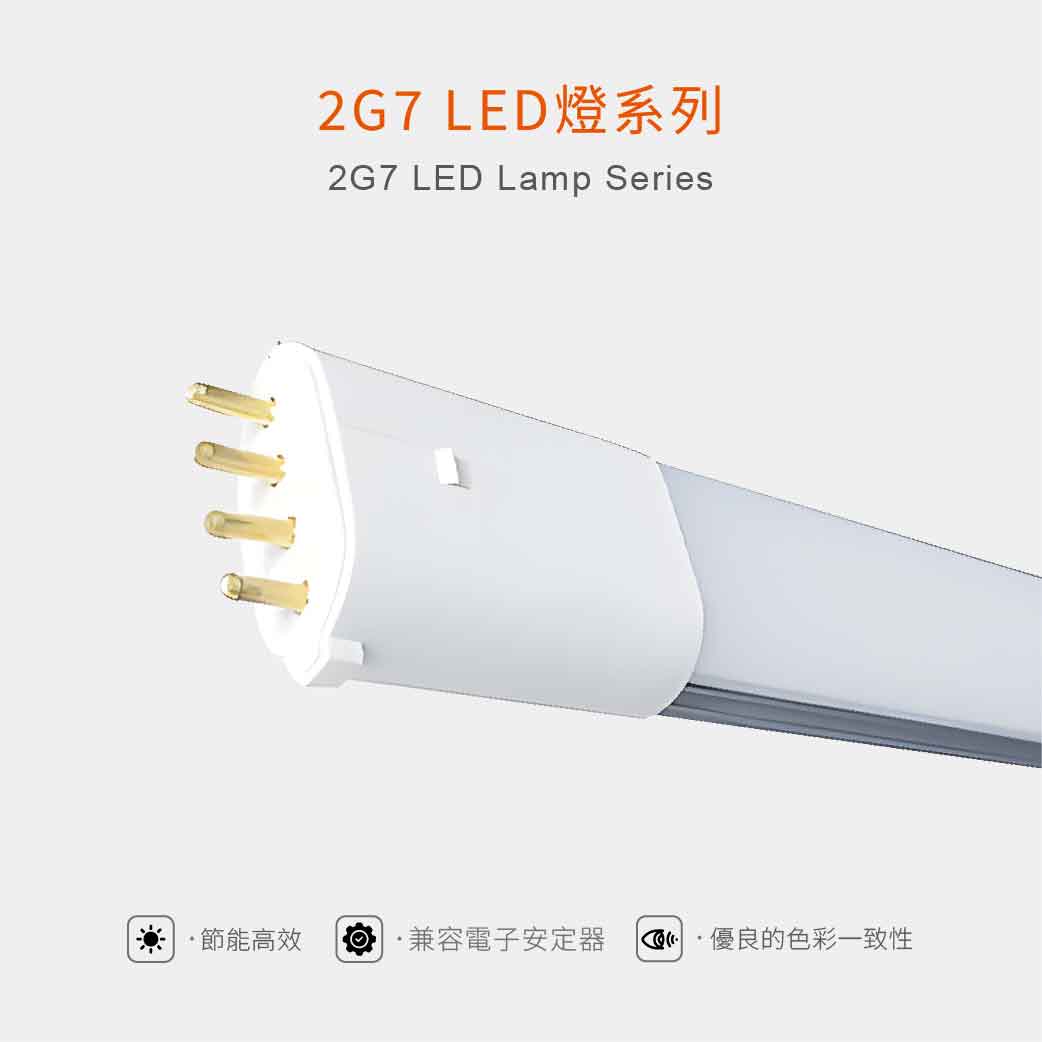

The 2G7 LED Lamp Series is an energy-efficient lighting solution designed to replace traditional 2G7 fluorescent lamps. Certified by CE and RoHS, this series features high luminous efficacy, long lifespan, and excellent color consistency, significantly reducing energy consumption and maintenance costs.The lamps utilize a single-sided 4-pin power input design for easy installation, and come in various dimensions, making them suitable for commercial lighting, offices, and indoor spaces. The 2G7 LED series offers multiple wattage options (9W–25W) and color temperatures (3000K–6000K) to meet diverse lighting needs, and is compatible with existing electronic ballasts.It is an ideal choice for upgrading from outdated fixtures to modern, energy-saving light sources.
